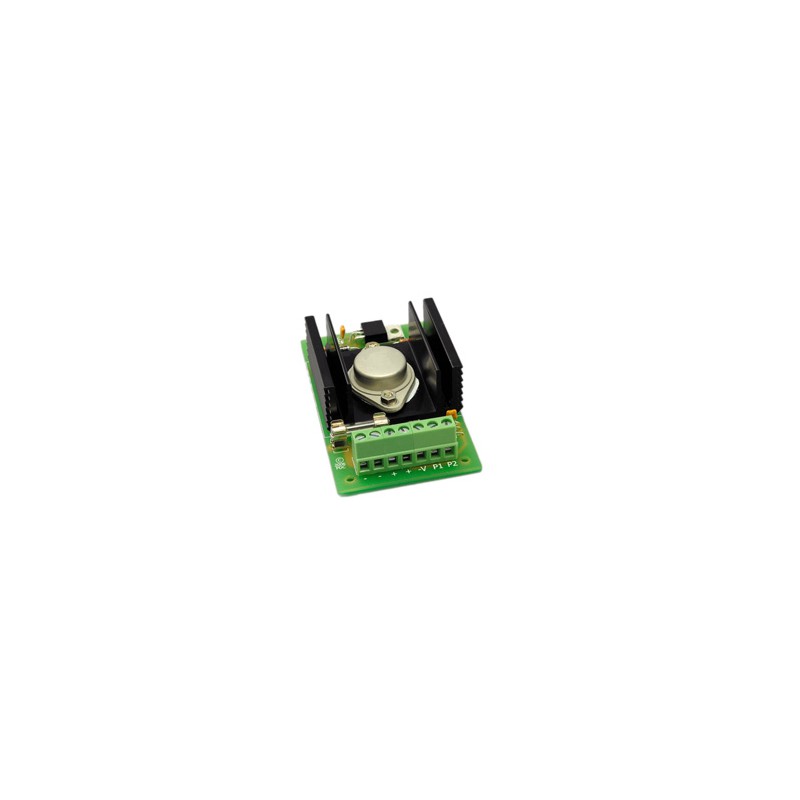

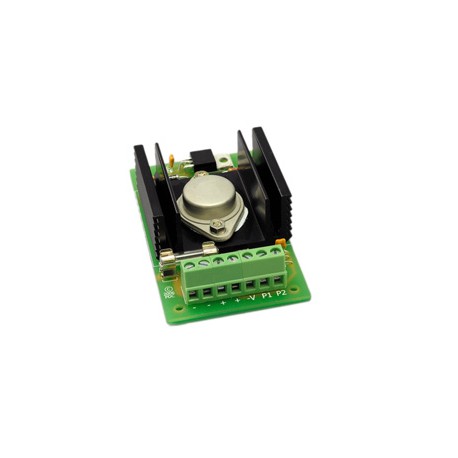

DC Lamp Continuous Dimmer (24VDC, 50W, Current-Sourcing)
DIM-50(POS)
The DIM-50(POS) is a reliable 24VDC voltage dimmer for DC incandescent lamps up to 50 watts.
This is the current-sourcing model. A current-sinking model is also available.
Product Description
The DIM-50(POS) is a 24VDC voltage dimmer for DC incandescent lamps up to 50 watts. We have supplied more than 15,000 units worldwide.
The dimmer may be used as a general purpose dimmer, and is also commonly used in control panels to dim pilot light intensities, such as in marine vessel wheelhouses.

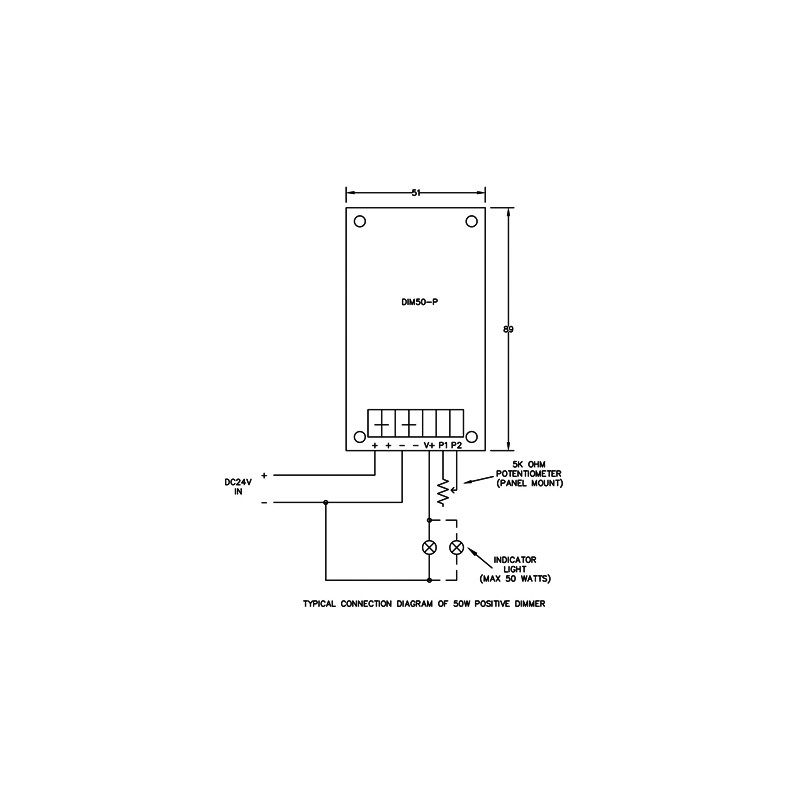

A panel-mountable 5k potentiometer for dimming control is included.
This is the current-sourcing model. A current-sinking model is also available.
Product Information
| Dimensions | L89 mm W51 mm H25 mm |
| Supply Voltage | 12 - 28 VDC |
| Dimmer Control | 5k potentiometer |
| Dimmer Output Type | Sourcing |
| Output Channels | 1 |
| Output Voltage | 3 - (Vsupply-3) VDC |
| Output Power (max.) | 50 W @ 24 VDC |
| Protection | 2A fuse |
