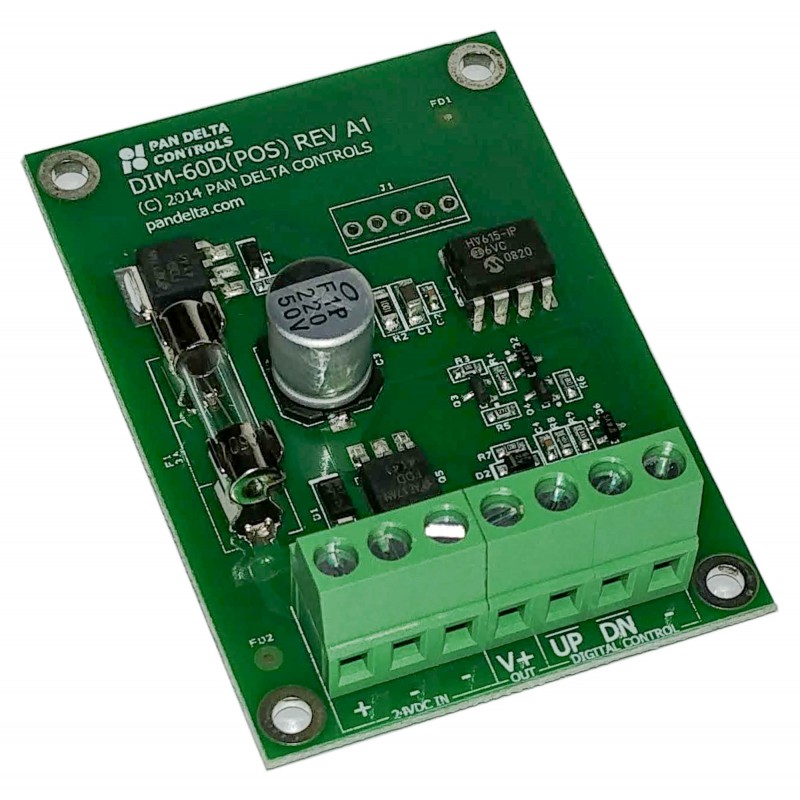

LED Dimmer (24VDC, 60W, Current-Sourcing, Discrete-Step)
DIM-60D(POS)
The DIM-60D(POS) is a 24VDC discrete-step PWM dimmer suitable for LED or DC incandescent lamps up to 60 watts.
This is the current-sourcing model. A current-sinking model is in development.
Product Description
The DIM-60D(POS) is a 24VDC PWM dimmer for LED or DC incandescent lamps up to 60 watts.
The dimmer may be used as a general purpose dimmer, and is also commonly used in control panels to dim pilot light intensities, such as in marine vessel wheelhouses.

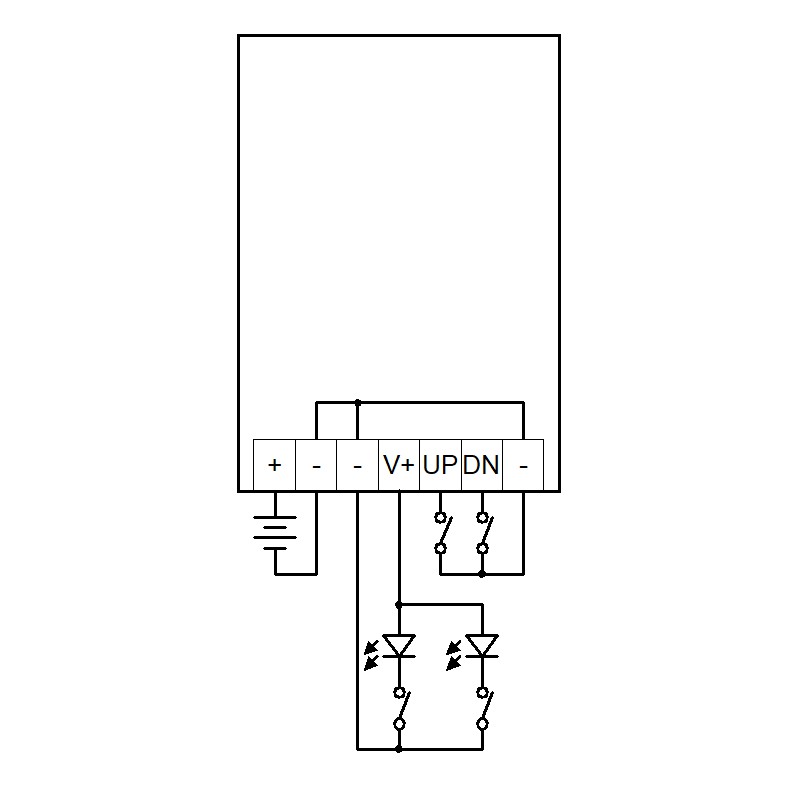

Two external push-buttons are required for intensity control (not included).
An optional kit is available for mounting the module on a DIN rail.
This is the current-sourcing model. A current-sinking model is in development.
Product Information
| Supply Voltage | 24 VDC -5/+10% |
| Dimmer Output Type | Sourcing |
| Output Channels | 1 |
| Output Power (max.) | 60 W @ 24 VDC |
| Protection | 3A fuse |
| PWM Output Frequency | 244.1 Hz |
| PWM Output Range | 0 - 100% |
