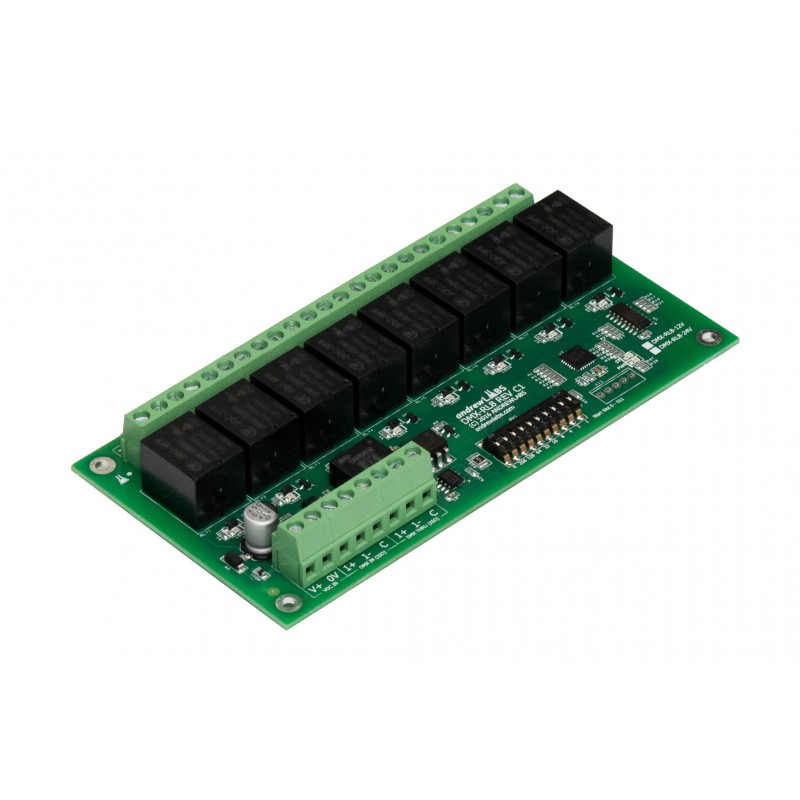

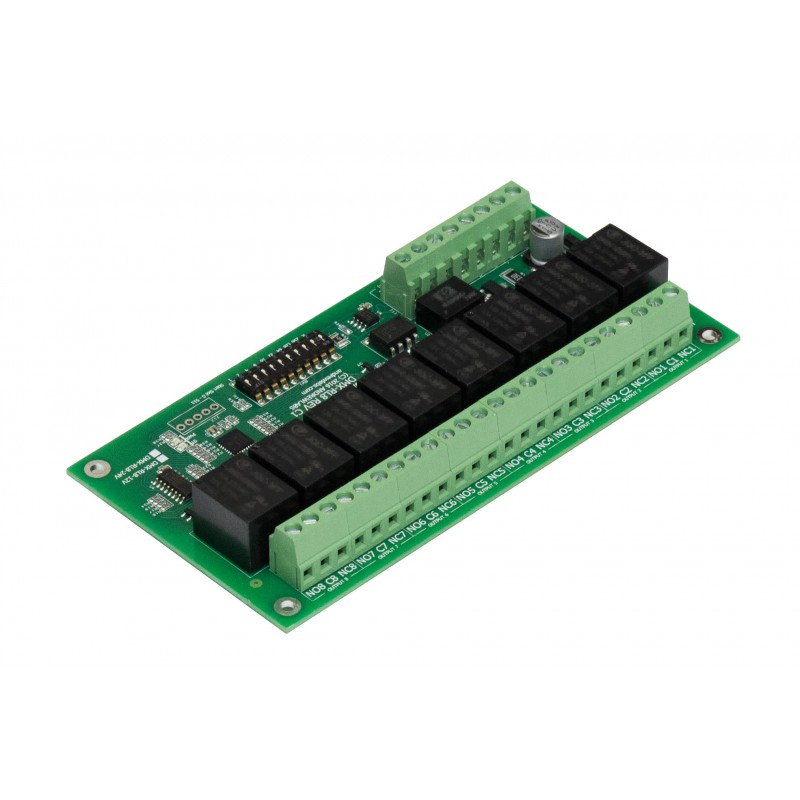

DMX 8-ch Relay Output Module (12 VDC)

DMX-RL8-12V

AndrewLabs

The DMX-RL8-12V is an 8-channel relay output module used for switching up to 8 loads from 8 DMX slots.

This is the 12 VDC supply voltage model. A 24 VDC supply voltage model is also available.

More details

USD 199.00

Product Description

The DMX-RL8-12V is a DMX512-A compatible, 8-channel relay output module. The module is capable of switching up to 8 loads from 8 DMX slots.

It features an optically-isolated receiver to eliminate ground loops.

An optional kit is available for mounting the module on a DIN rail.

This is the 12 VDC supply voltage model. A 24 VDC supply voltage model is also available.

Product Information

DimensionsL5.6" W2.875"
Supply Voltage12 VDC -5/+10%
Power Consumption (max.)6 W
Working Temperature-40 to +85 °C
Output Channels8
Relay Output ContactsNO, NC, COM
Relay Output Rating10 A / 230 VAC
DIN Rail MountableYes, with optional kit
DMX IN Isolated ReceiverYes, 1 kV isolation
DMX IN TerminationYes, built-in DIP switch selectable
DMX THRU PortYes, passive loop
DMX Start SlotSelectable, from 1 - 512 (0 - 511 on DIP switch)
DMX Update RateFull 44 updates/second
DMX Start Code HandlingResponds to NULL start code, all others ignored
DMX Data Loss HandlingMaintain last state
DMX Output Activation0 - Off / 1 to 255 - On

Accessories

Download

DMX-RL8 IIG Rev A4.pdf

DMX-RL8 Information and Installation Guide

Download (481.18k)
