DMX 8-ch Solid State Relay Output Module



The DMX-SSR8 is an 8-channel solid-state relay (SSR) output module used for switching up to 8 loads from 8 DMX slots.

More details

USD 149.00

Product Description

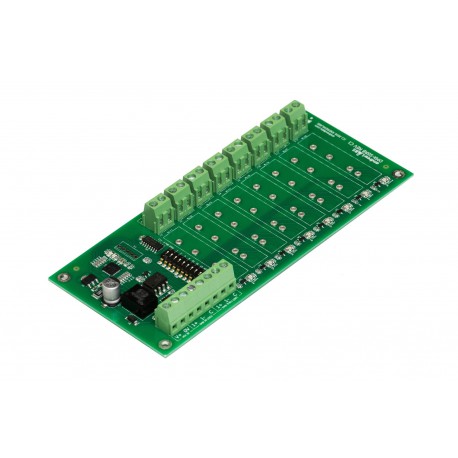

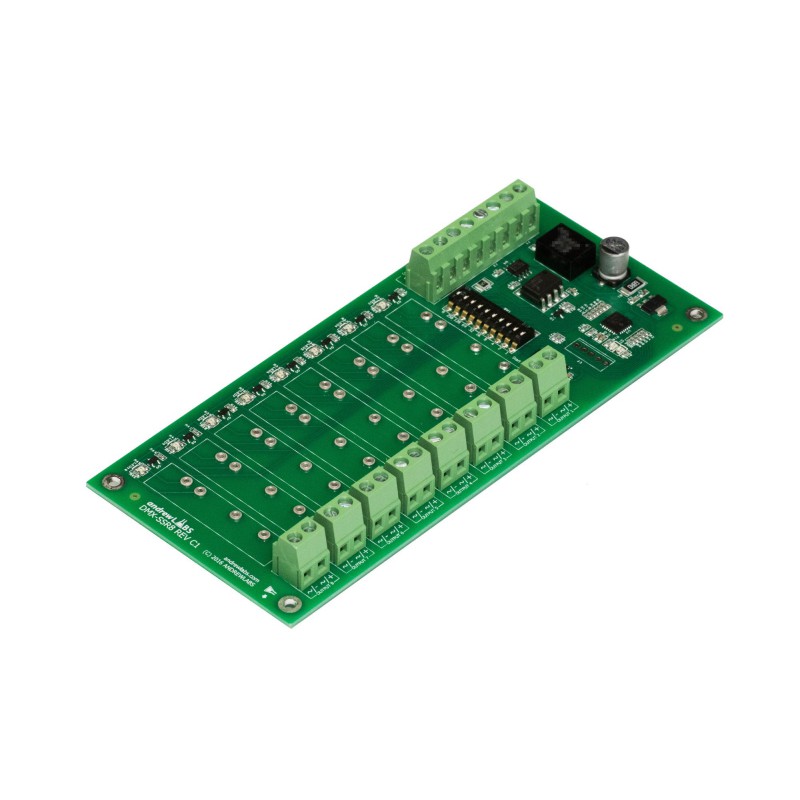

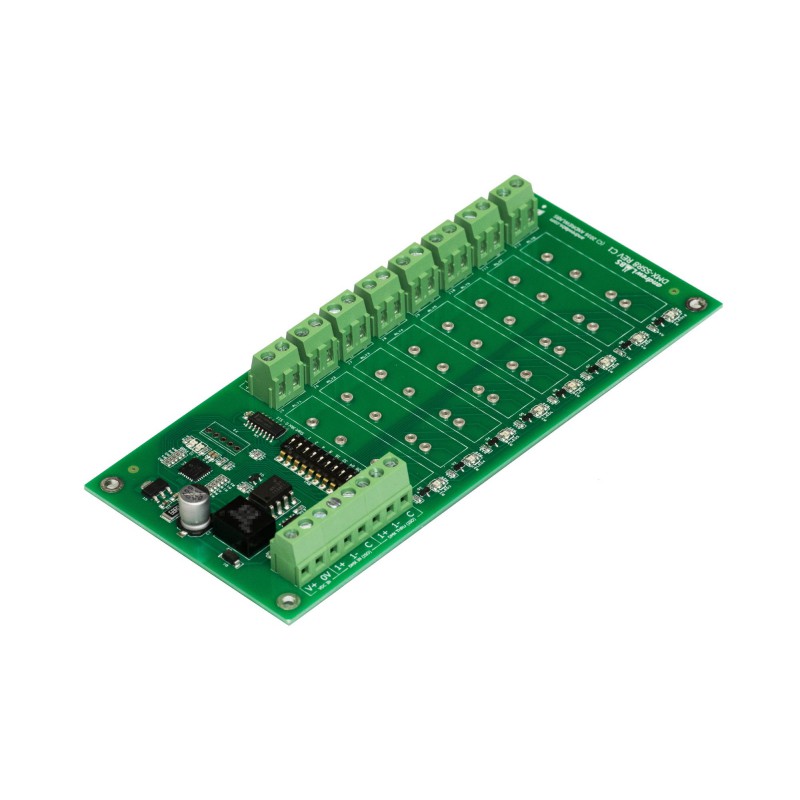

The DMX-SSR8 is a DMX512-A compatible, 8-channel solid-state relay (SSR) output module. The module is capable of switching up to 8 loads from 8 DMX slots.

This module accepts up to 8 customer-replaceable solid-state relays installed in pin sockets. Both AC- and DC-load SSR types working with a control voltage of 5 VDC are supported.

The module accepts a wide voltage range from 12 - 24 VDC.

It features an optically-isolated receiver to eliminate ground loops.

An optional kit is available for mounting the module on a DIN rail.

Solid-state relays are not included.

Product Information

DimensionsL6.4" W2.875"
Supply Voltage12 - 24 VDC ±10%
Power Consumption (max.)6 W
Working Temperature-40 to +85 °C
Output Channels8
Relay Output ContactsNO, COM
DIN Rail MountableYes, with optional kit
DMX IN Isolated ReceiverYes, 1 kV isolation
DMX IN TerminationYes, built-in DIP switch selectable
DMX THRU PortYes, passive loop
DMX Start SlotSelectable, from 1 - 512 (0 - 511 on DIP switch)
DMX Update RateFull 44 updates/second
DMX Start Code HandlingResponds to NULL start code, all others ignored
DMX Data Loss HandlingMaintain last state
DMX Output Activation0 - Off / 1 to 255 - On



DMX-SSR8 IIG Rev A3.pdf

DMX-SSR8 Information and Installation Guide

Download (323.75k)
