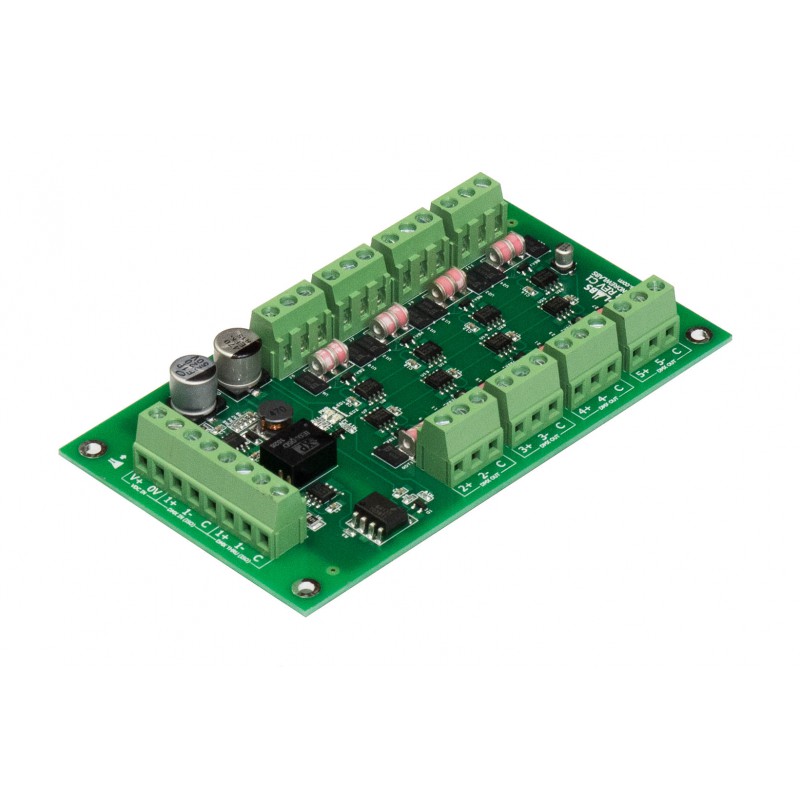

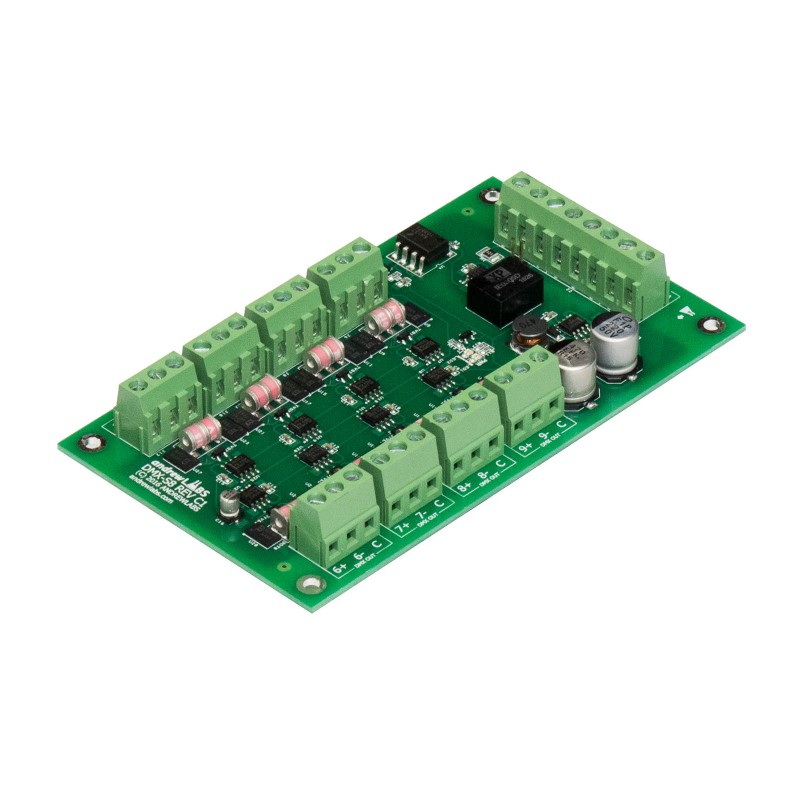

DMX 8-way Splitter Module

DMX-S8

AndrewLabs

The DMX-S8 is an 8-way splitter module that expands the number of devices that may be connected to a DMX network, and additionally helps to simplify DMX network layouts.

More details

USD 249.00

Product Description

The DMX-S8 DMX 8-way splitter module replicates the incoming DMX data into 8 outputs, while reconditioning and boosting the signal for extended reach.

Each output has been hardened to protect against short-circuits, 10 kV ESD, as well as 4 kV EFT transients and 5 kV surge transients. This additional protection is extremely useful when connected fixtures are located in uncovered and open areas, such as fountain installations.

It features an optically-isolated receiver to eliminate ground loops.

An optional kit is available for mounting the module on a DIN rail.

The module may also be used as a standard RS422 splitter module for data rates up to 250 kbps.

Product Information

DimensionsL5" W2.875"
Supply Voltage12 - 24 VDC ±10%
Power Consumption (max.)4 W
Working Temperature-40 to +85 °C
Output Channels8
DIN Rail MountableYes, with optional kit
DMX IN Isolated ReceiverYes, 1 kV isolation
DMX IN TerminationYes, shorting shunt / jumper selectable
DMX THRU PortYes, passive loop
DMX Update RateFull 44 updates/second
RS422 Signalling Rate (max.)250 kbps

Accessories

Download

DMX-S8 IIG Rev A1.pdf

DMX-S8 Information and Installation Guide
